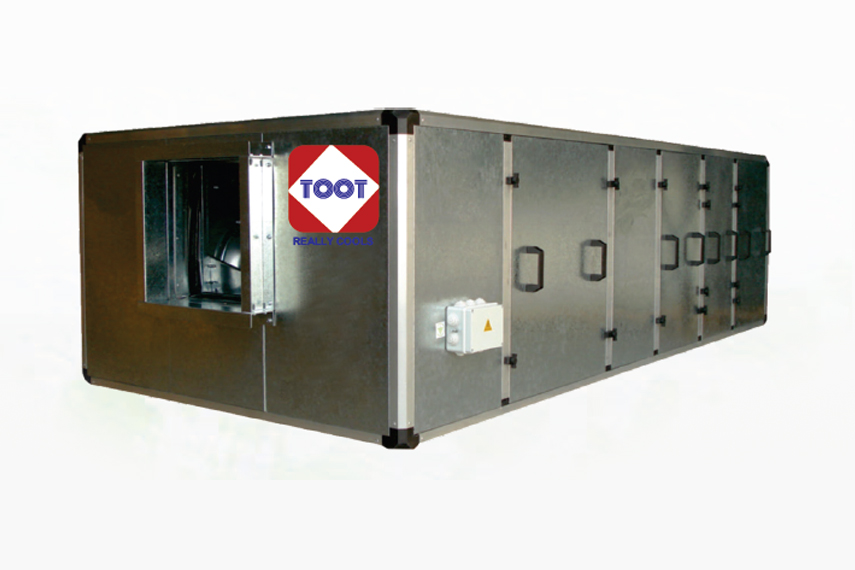

Air Handling Units

TOOT MNE offers innovative Air Handling Solutions engineered to your specific needs. TOOT MNE brings experience in building quality and reliable AHUs guarantees the User the performance of AHU as per the Performance Ratings and Efficiency, generating higher Value.

ARI certified in-house manufactured Heating and Cooling Coils and AMCA certified Blowers guarantees the performance of AHU as per the Ratings / Selection software. AHU's 50 mm thick insulated panels meet the standard in terms of Casing Strength, Casing Leakage, Thermal Conductivity, Thermal Bridging properties, Filter By-Pass, and Sound levels.

Toot offers tremendous flexibility on Dimensions, Material, and Components enabling the right AHU for every application and need. With variable aspect ratio and modular design, Toot can design to fit the application and space.

Air Handling Unit Series

Horizontal Floor Mounted AHUs (THF)	900 to 33000 CFM nominal Airflow Casing thickness 25 mm to 50 mm with and without Thermal break. 21 different sizes.
Vertical Floor Mounted AHUs (TVF)	750 to 9500 CFM nominal Airflow Casing thickness 25mm to 50 mm with and without Thermal break. 11 different sizes.
Ceiling Mounted AHUs (TCF)	900 to 5000 CFM nominal Airflow Casing thickness 25mm to 50 mm with and without Thermal break. 11 different sizes.
Energy recovery AHUs (THU)	900 to 25000 CFM nominal Airflow Casing thickness 25mm to 50 mm with and without Thermal break. 17 different sizes.
Ventilation AHUs (TVE)	900 to 33000 CFM nominal Airflow 15 different sizes.

Customized Air Solutions of AHU for Indoor Air Quality

• Customized Application includes:
• Flexible Cabinet Sizing
• Galvanized, Pre-Coated, Pre-Plasticized, Aluminum or Stainless Panels
• 25 mm or 50 mm thick double- wall PUF panels
• Multiple Section depths
• Selection of drain pan material
• Mixing boxes and economizers
• Multiple Coil Depth Sections
• Integral Face and By-pass dampers
• Energy recovery sections — Run round coils, fixed plate heat exchangers, Heat recovery wheels
• Normal or High Delta T coils
• Coil fins of different coating materials
• Multiple Fan Selection — Belt or Direct Drive, Forward or Backward Curved or Aerofoil, Exhaust Fans
• Motors — Standard and Energy-efficient, V-Belt and Flat Belt Drives,
• Humidifiers and De-Humidifiers I Filters — Flat Filters, Bag Filters, Microvee Filters, Auto roll Filters.
• Digital Controls
• Optional Accessories —Window, Door, Light, Gauges, etc.
• (Pictures of AHU or AHU accessories)
• Flexible Shipping methods.
